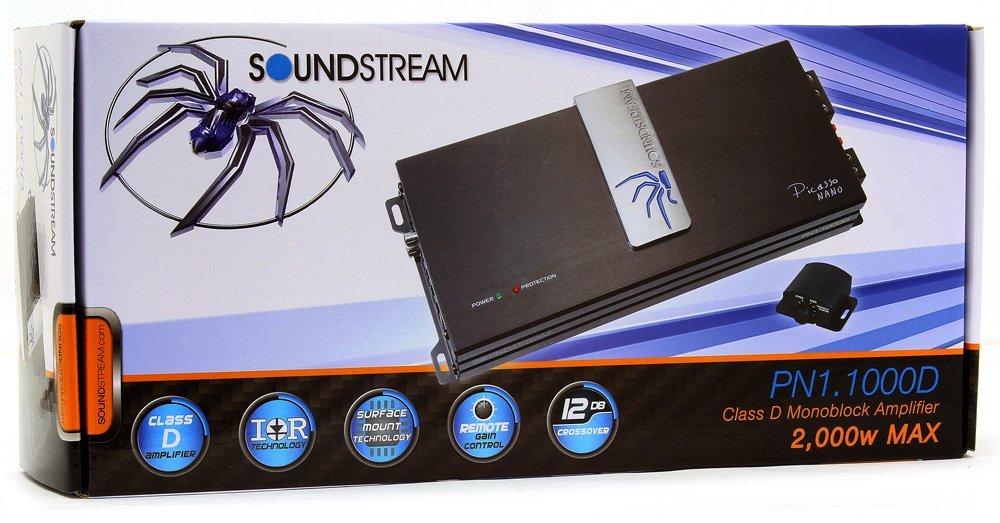

Soundstream PN1.1000D Picasso Nano Series 2000W Max Power 1-Channel Monoblock Class-D Car Amplifier

Soundstream PN1.1000D

When you get your first look at Picasso Nano Amplifiers, you will realize that size really does not matter too much at all. It is amazing and quite unbelievable that such a small piece of music amplifying equipment can have such an amazing output. What’s more, is in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears. You can install the amplifier under the front seat or the back seat, and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more, is the amplifier does not get heated up after a half-hour of continuous music playing at high volume. Thanks to the full range crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. Other sport compact amplifiers use bizarre technologies with pseudo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry. These amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

Features:

• 1 Channel Class-D Monoblock 2-ohm Stable.
• Applying New Concept "Low-Heat Producing Circuit".
• Full MOSFET DC-DC PWM Power Supply.
• Four way Protection.
• Double Sided FR-4 PC Board.
• SMD Technology.
• High Level Input Connector.
• Variable Low Pass Remote Dashes Mount Gain Control.
• NI Plated RCA Input Connectors.

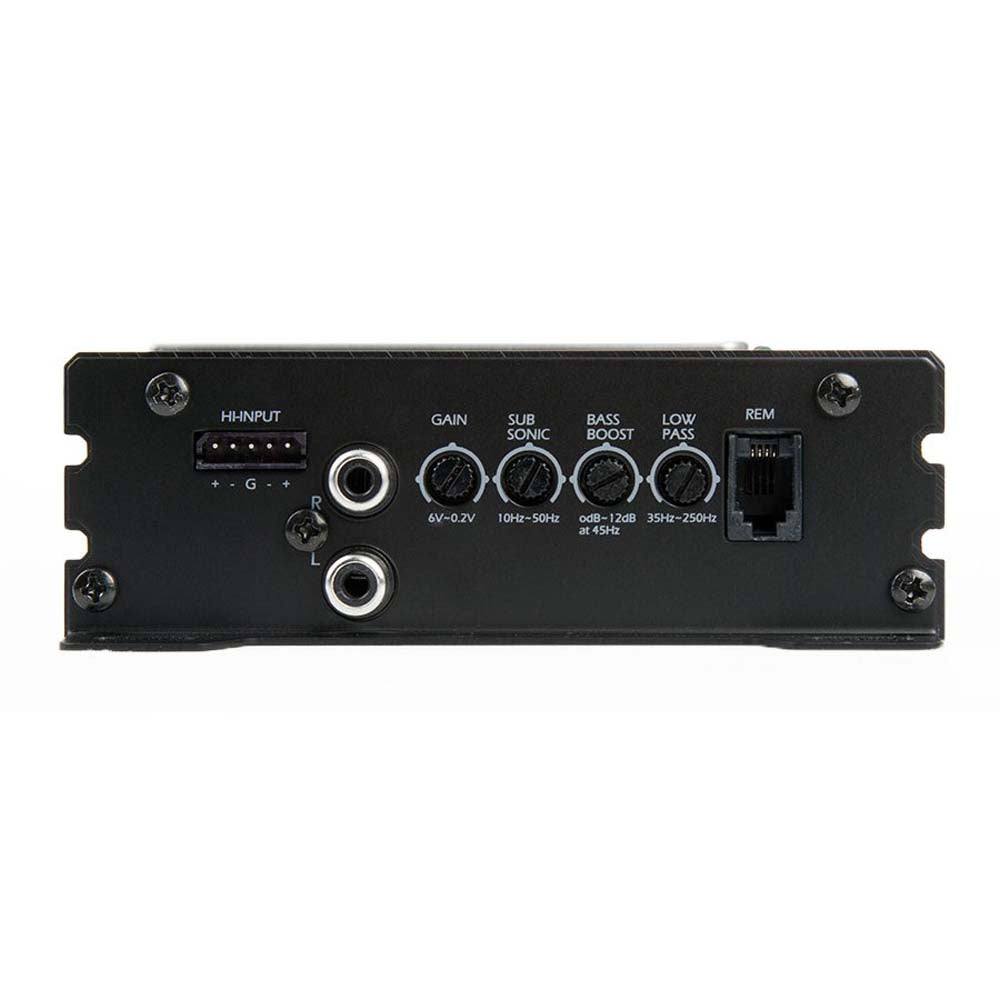

• Adjustable Low-Pass, Bass boost, Subsonic.
• Adjustable Gain Control.

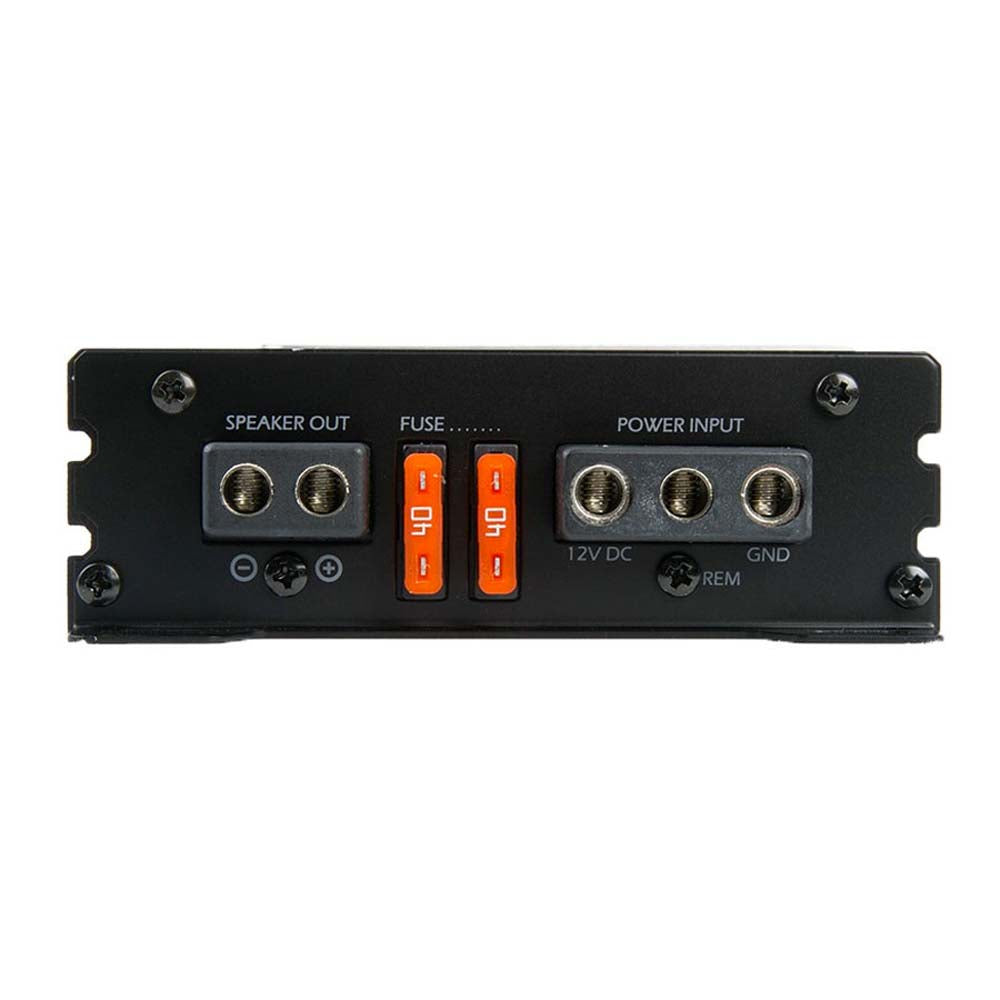

• NI 4Gauge Input Block Type Power Terminal & 4Gauge Out Speaker Block Type Terminals.
• Ultra Slim Size.

Specifications:

• Picasso Nano Series Class-D Monoblock Amplifier
• Power Rating:
  • Max Power : 2000 Watts
  • RMS Power (@ 1Ω) : 2000 Watt x 1 Channel
  • RMS Power (@ 2Ω) : 1300 Watt x 1 Channel
  • RMS Power (@ 4Ω) : 700 Watt x 1 Channel
• Input Sensitivity : 200mV - 6.0V
• THD : <0.1%
• Operation Voltage : 9VDC - 16VDC
• Bass Boost : 0 - 12dB
• Bass Boost Frequency : 45Hz
• Crossover (-12dB/Oct):
  • High Pass Filter : N/A
  • Low Pass Filter : 35Hz - 250Hz
  • Subsonic Filter : 10Hz - 50Hz
• Frequency Response : 10Hz - 300Hz
• Signal-to-Noise Ratio : 104dB
• Fuse Rating : 40A x 2
• Dimensions : 10.25"L x 8.25"W x 2.75"H

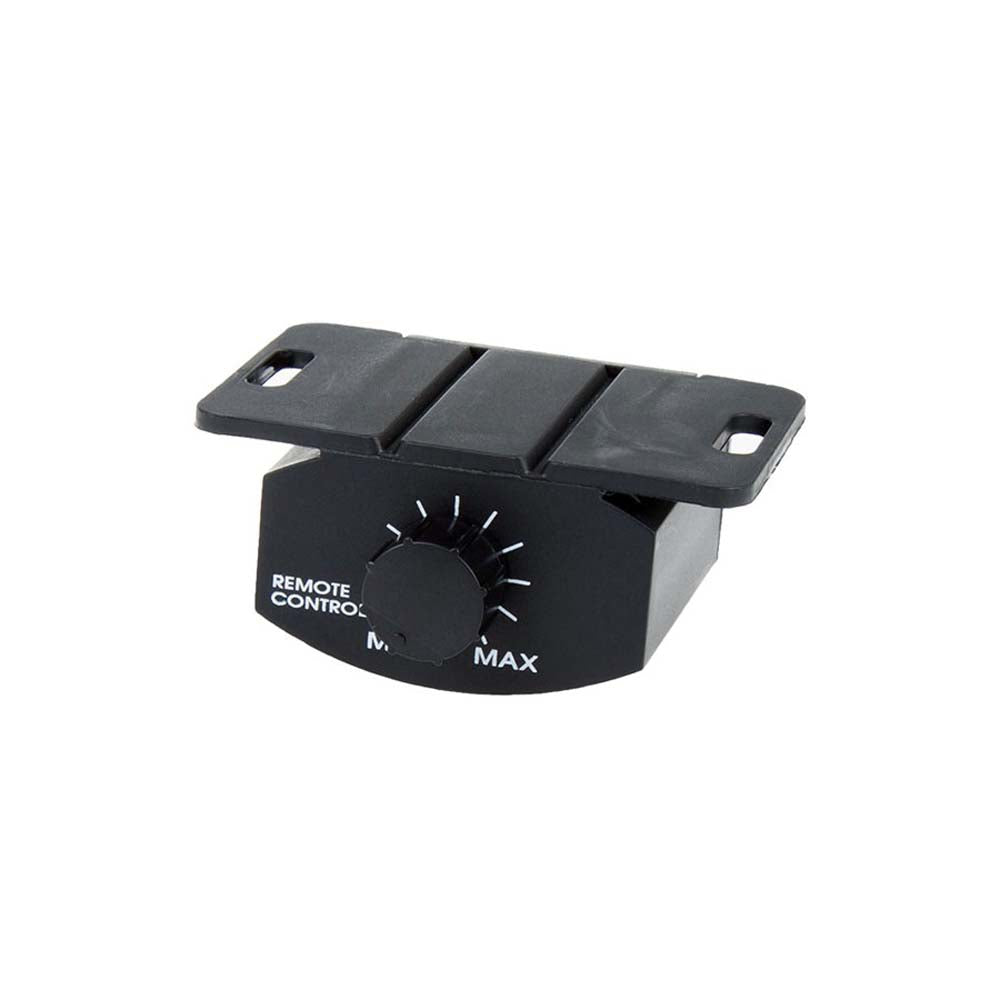

• Remote Gain Control : Included
