Precision Power TRAX4.1200D TRAX Series 1200W Max 4-Channel Class-D Car Amplifier
Precision Power TRAX4.1200D TRAX Series 1200W Max 4-Channel Class-D Car Amplifier

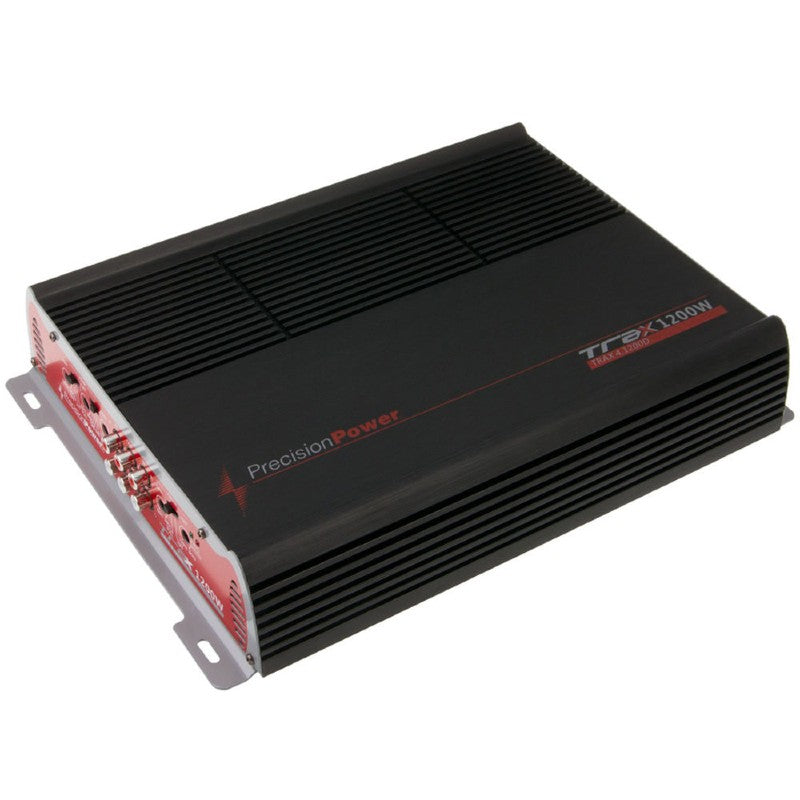

Precision Power TRAX4.1200D
The Precision Power TRAX4.1200D is a 1200-watt 4-channel Class D full-range amplifier built to deliver efficient power and clean performance for upgraded car audio systems. Designed for 2-ohm stereo and 4-ohm bridged operation, this amplifier gives installers the flexibility to power front and rear speakers or bridge channels for higher-output speaker setups.
A hybrid aluminum alloy heatsink helps manage heat, while the MOSFET power supply, audiophile-grade IRTM transistors, and military-grade SMT PCB support reliable dynamic performance. Variable 12dB high-pass, low-pass, and subsonic crossovers, along with 12dB bass boost, allow the system to be tuned for stronger output and better overall balance.
Features
- High Efficiency Class D Full Range & Monoblock Amplifier
- Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
- 2-ohm Stereo & 4-ohm Bridged Class D Full Range
- MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- Direct Short, Thermal, & Overload Circuits Protect Amplifier
- 200mV-6V Low Level/RCA Input w/ Bridged Operation Outputs

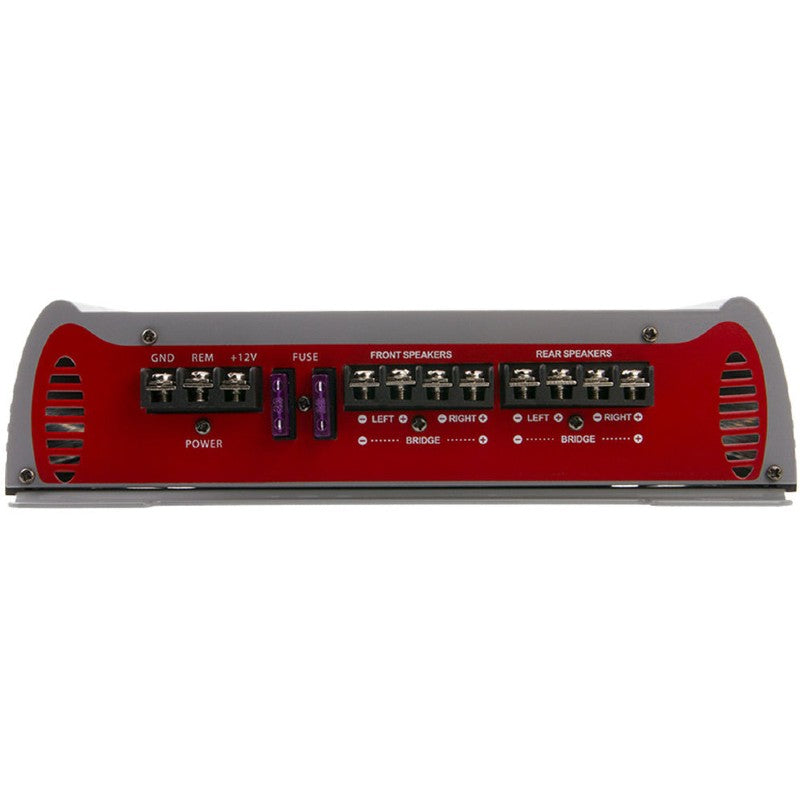

- 4g Power/Ground Terminals & 8g Speaker Output Terminals

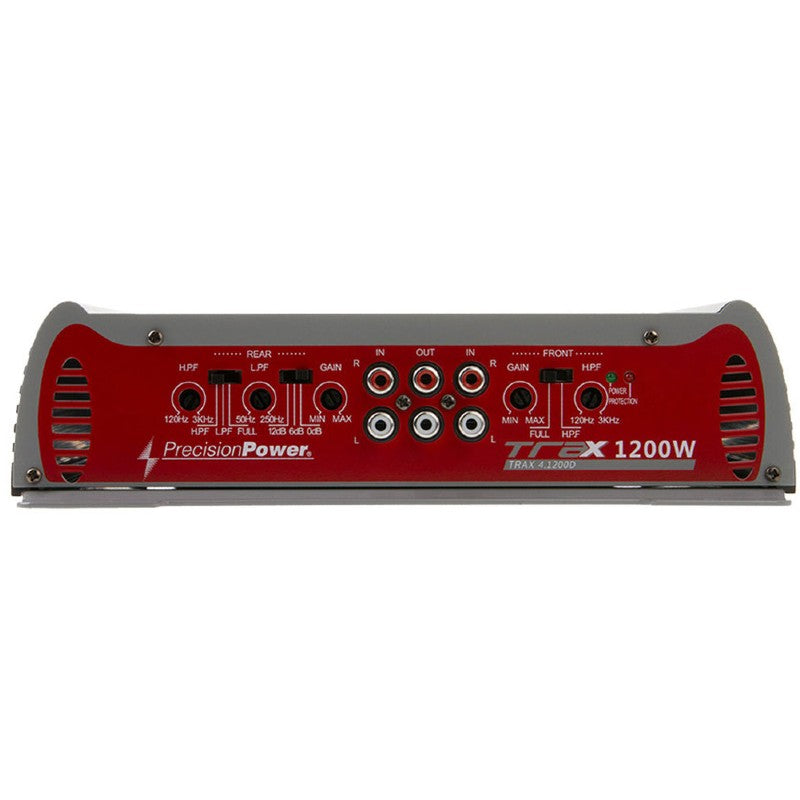

- Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
- 12dB Bass Boost Increases Low Octave Harmonics
Specifications
- Power Rating :
- Max Power : 1200 Watts
- RMS Power (@ 2Ω) : 150 Watt x 4 Channel
- RMS Power (@ 4Ω) : 100 Watt x 4 Channel
- RMS Power Bridged (@ 4Ω) : 300 Watt x 2 Channel
- Bass Boost : 0 - 12dB
- Crossover (-12dB/Oct) :
- High Pass Filter : 120Hz - 3KHz
- Low Pass Filter : 50Hz - 250Hz
- Subsonic Filter : N/A
- Input Sensitivity : 200mV - 6.0V
- Dimensions : 11.75"L x 9.75"W x 2.5"H
