Diamond Audio MS694NEOLK 14+ Harley Davidson Cut in Lid Kit
$1,209.99
Features:

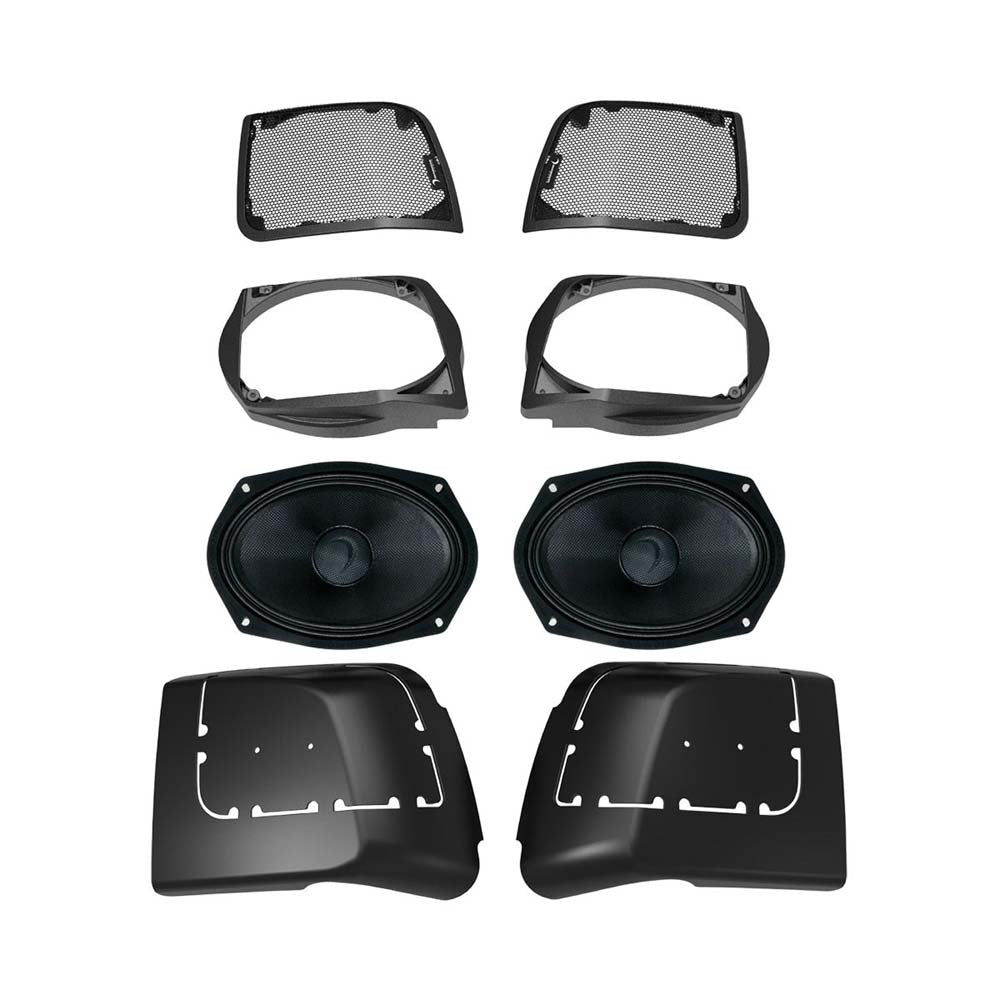

- Harley Davidson ® 14+ Cit in Lid Kit
- Includes .5” 6” x 9” Spacer Ring

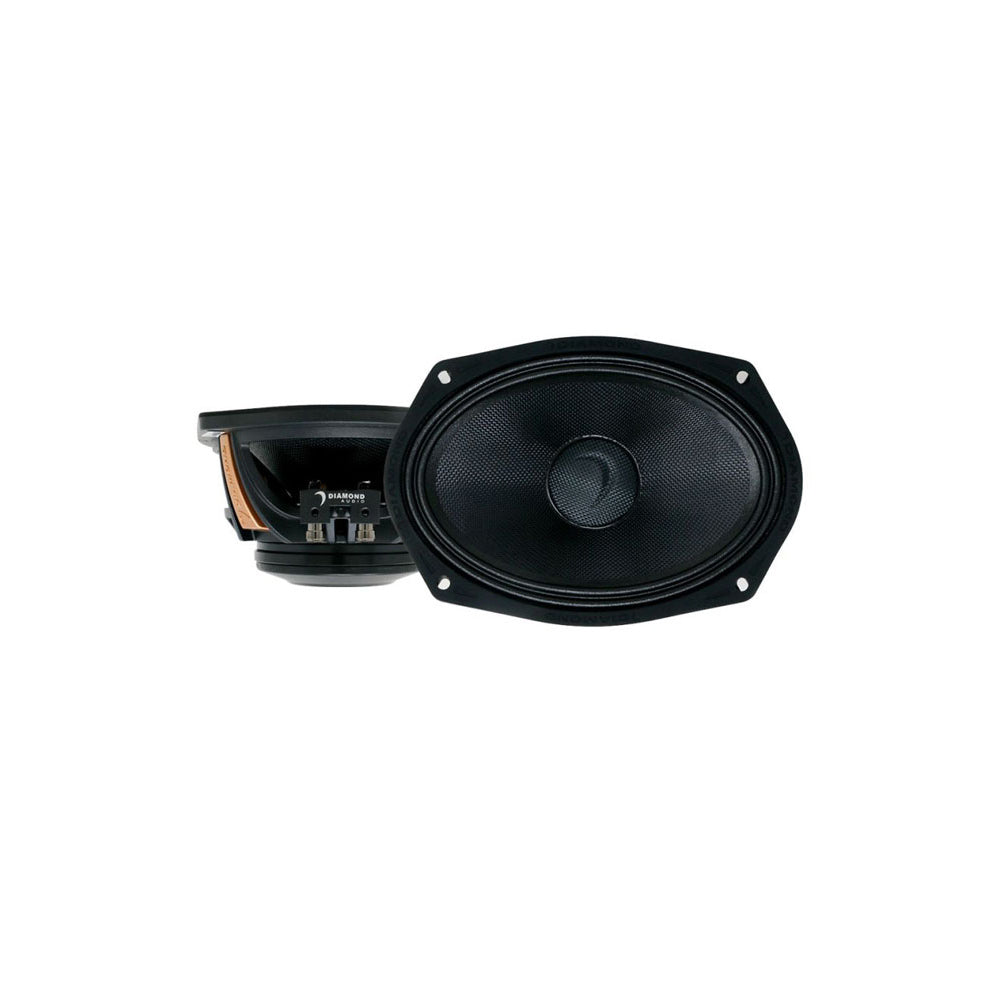

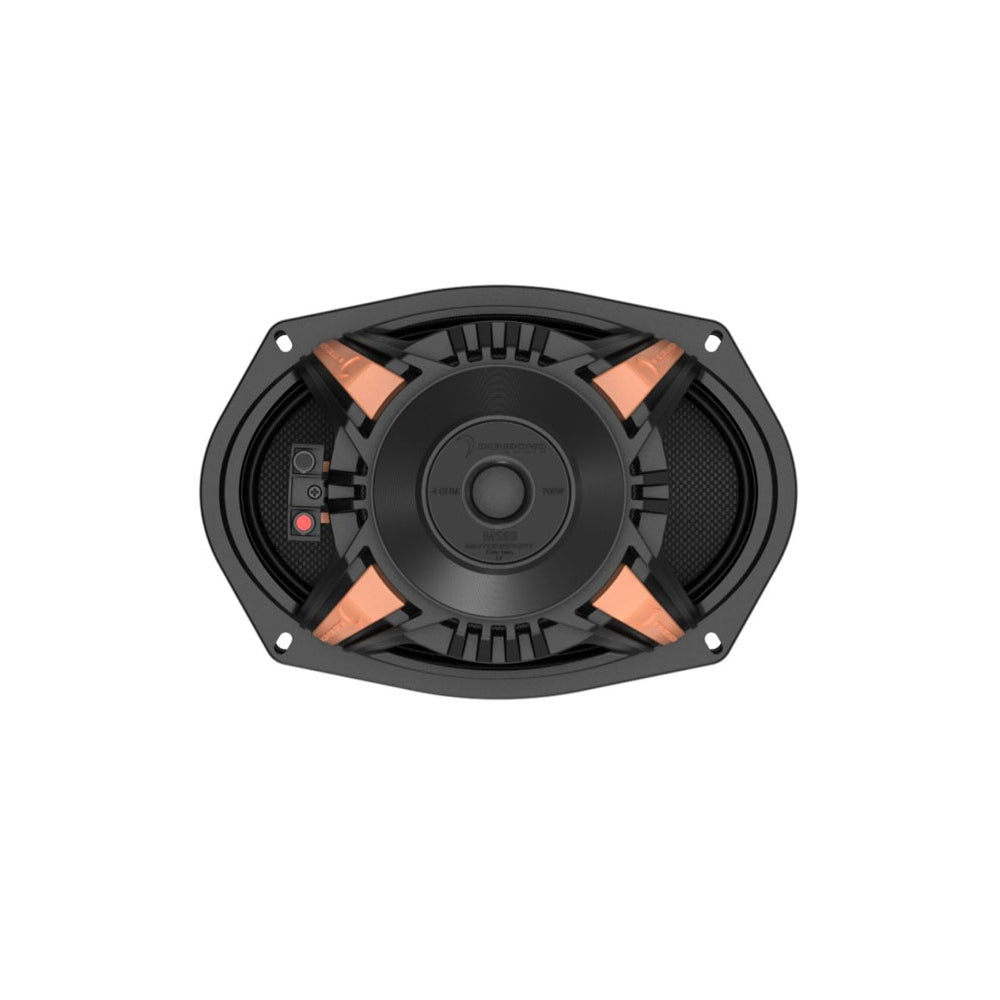

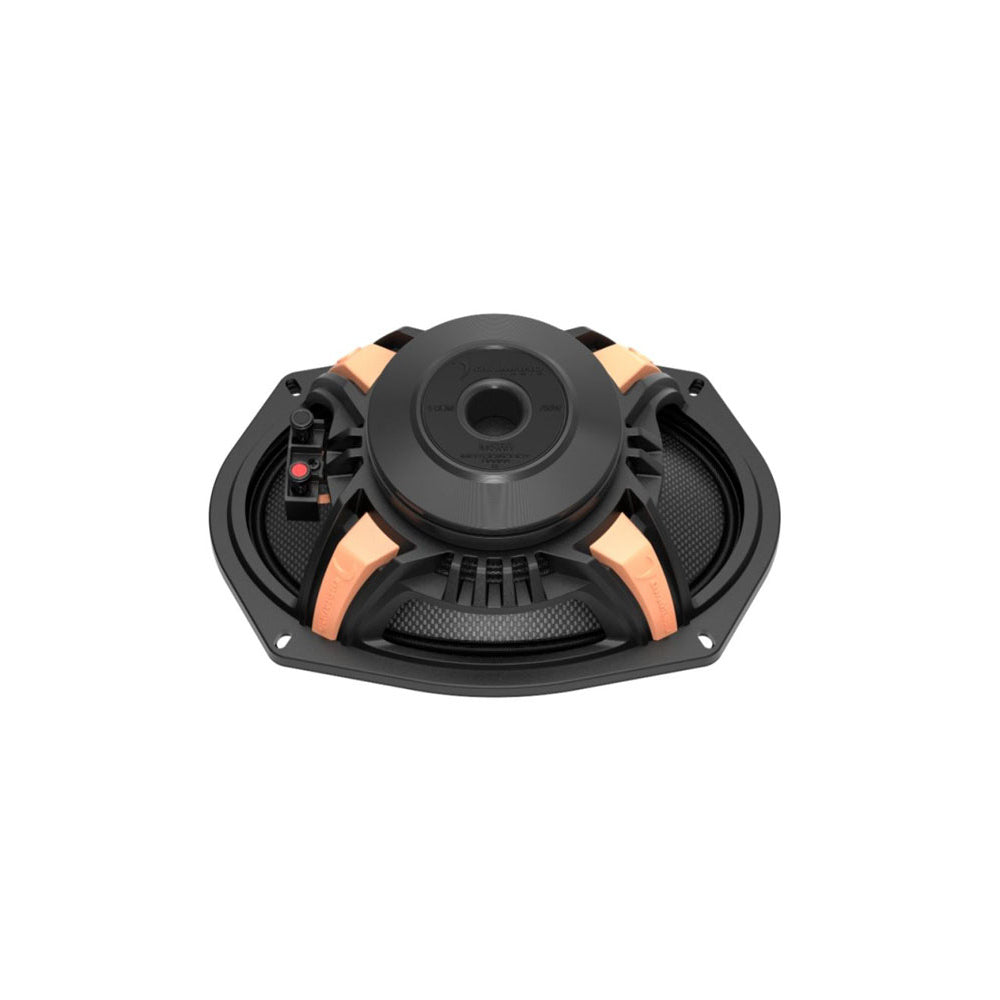

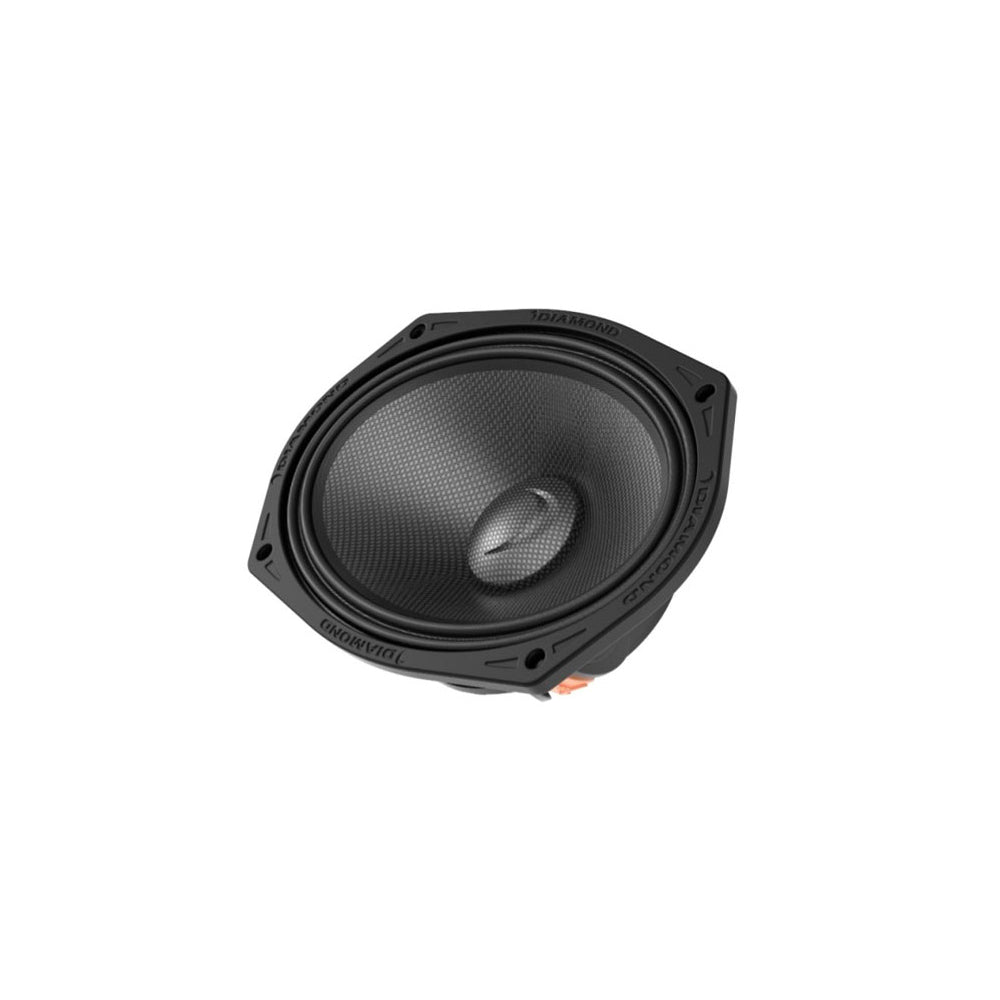

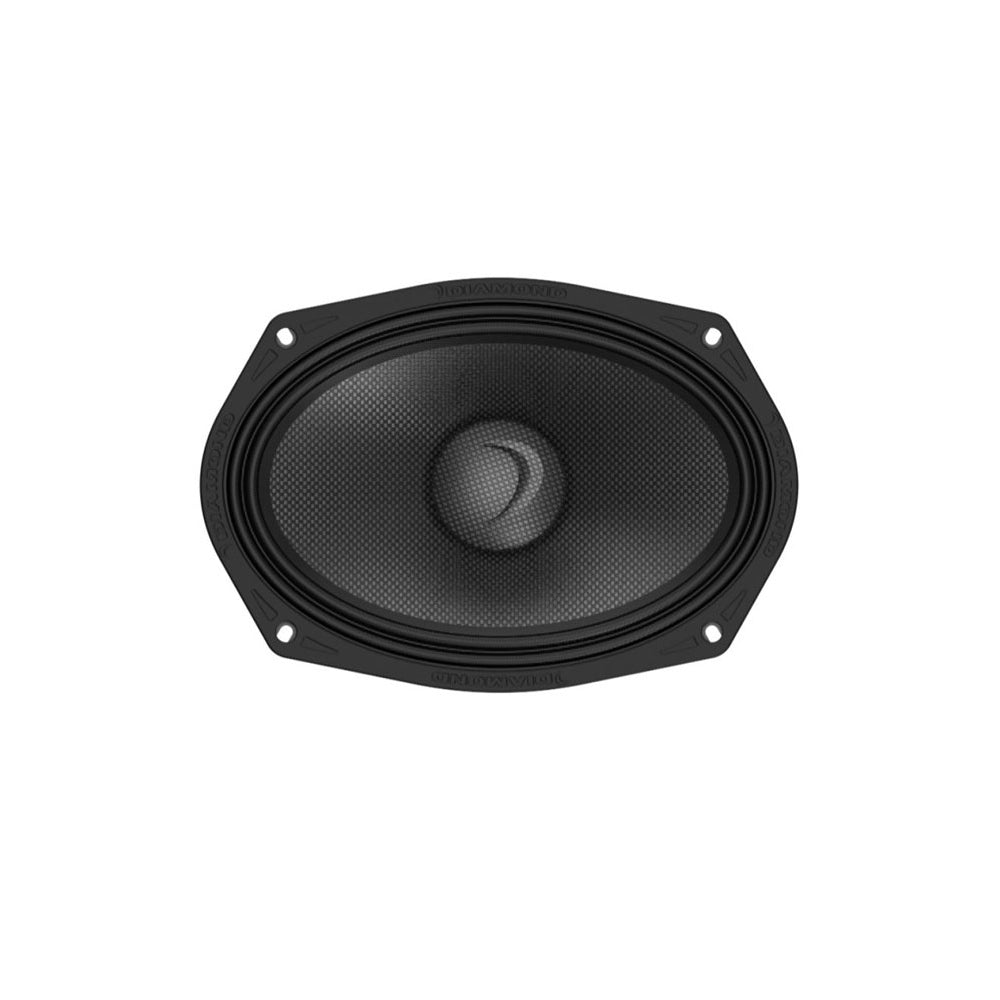

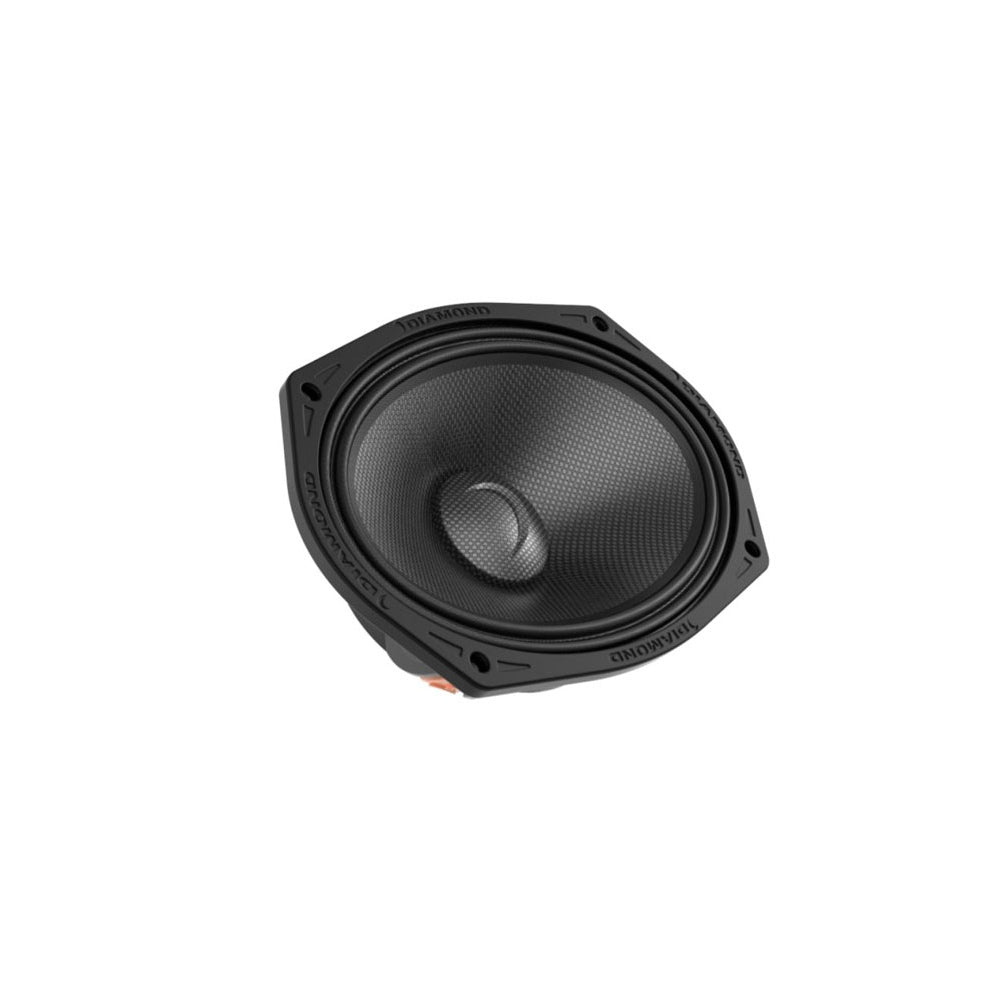

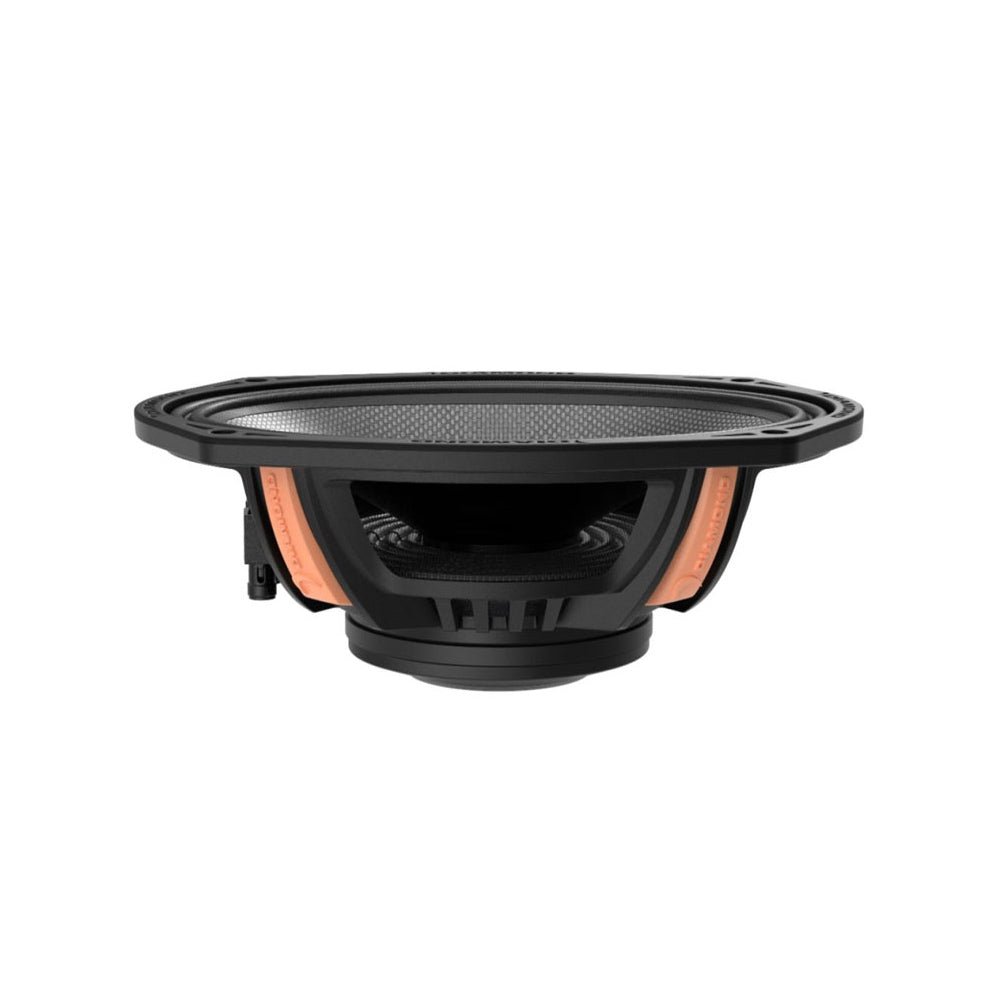

- Includes MS69NEO Motor Sports 6” x 9” Marine Grade Speaker
- Includes Plug-n-Play Wire Harness W/ DLED Wiring
Specifications:
- Speaker Size: 6"x9"
- Description: 14+ Harley Davidson Cut in Lid Kit - MS694NEOLK
- Nominal Impedance (ohms): 4Ω
- RMS Power Rating: 350W
- Max Power Rating: 700W
- Voice Coil Diameter (inch/mm): 2" (50.8mm)
- Power Handling (RMS/Peak): 350W/700W
- SPL (db): 96
- Re (Ω)[series]: 3.2
- Qms: 9.971
- Qes: 0.558
- Qts: 0.528
- Fs-Free Air Resonance (Hz): 90Hz
- Vas (Liter): 10.7
- Cms (mm/N): 0.177
- Mms (g): 17.5
- Sd (cm²): 0.0207
- BL (T*M): 7.785
- Xmax - Inch(mm): 1.2
- Pwr (W) NOM/MAX: 350W/700W
- Mounting Diameter (inch/mm): 8.583"X5.748"(218mmX146mm)
- Mounting Depth: 3.091"(78.5mm)
- Total Depth: 3.433"(87.2mm)
