Diamond Audio DA9813SGSP5R (Package Includes MSHD9813SG, MICRO84U, MS652NEO2S, DHDSG13, MS692NEO2LK13, MSPWHR, DHDMCA, '98-'13 STREET GLIDE)
$3,969.99
Skip to product information
Diamond Audio DA9813SGSP5R (Package Includes MSHD9813SG, MICRO84U, MS652NEO2S, DHDSG13, MS692NEO2LK13, MSPWHR, DHDMCA, '98-'13 STREET GLIDE)
$3,969.99
Features:
MSHD9813SG Features:
- 10 Channel - Clip Free Independent Outputs (6) 5v Rms Rca Outputs + (4)
- 50x4@2Ω / 25x4@4Ω Rms Clip-free
- Wireless Apple CarPlay
- 7" Ultra Bright, 1000 Nit LCD Touchscreen
- Glove-friendly Touchscreen
- Retains Handlebar Controls, Reconfigurable Though Programming
- 6 Independent Eq's for the Ultimate Sound Customization (1 Global, 5 for Setup)
- 10ch Dsp Features Time Delay, Hp/lp/bp Crossovers With Adjustable 6,12,18,24db Slopes Independent Channels Can Be Linked Together or Separated From Fader Control (Default)
- Ipx6 Water Resistance / Weatherproof Trim Gasket Included
- AM/FM/Weatherband
- Media Player Supports Mp3, Aac, Wma, Ape, Flac, Wav, Mpeg4, H.263, H.264, H.265, Xvvid, Avi, Vp8, Vp9
- Bluetooth 5.2 Streaming / Hands-free Calling (Microphone Included)
- Usb Media Input / Charger 2.1a
- Backup Camera Input
- Bluetooth Line Driver for Maximum Output
- Multiple Patented Features and Technologies
MICRO84U Features:
- 4 Channel
- 300W x 2 @ 4Ω RMS Bridged
- 150W x 4 @ 2Ω
- 80W x 4 @ 4Ω
- All-Weather Application
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included

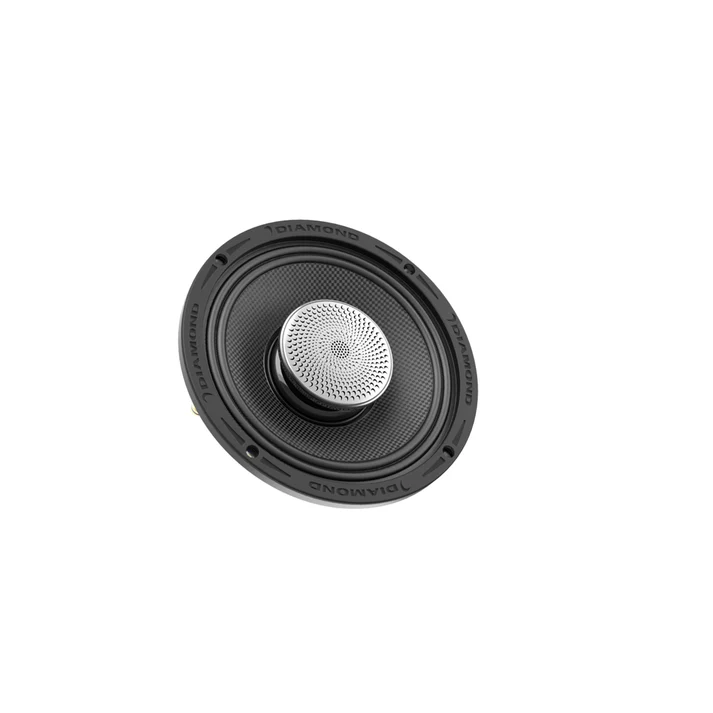

MS652NEO2S Features:
- Speaker Size: 6.5"
- Speaker Type: Horn Loaded Co Axial
- Bi-ampable: Yes
- Ohms (Per Coil): 2
- Number of Voice Coils: Dual
- Field Servicable Voice Coil: Yes
- Cone Material: Carbon Fiber
- Diaphragm Material (Pen): Polyethylene Naphthalate
- Basket Material: Cast Aluminium
- Magnet Type: Neodymium
- Includes Speaker Fitment Adapter: No
- Includes Speaker Grill: No
- Surround Material: Rubber
- Water Resistance: Yes
- Voice Coil Diameter: Inch (Mm) - 2"
- Power Handling Max: 600
- Power Handling Rms: 200
DHDSG13 Features:
- Designed for 1998-2013 Street Glide
- Durable, OEM Quality Construction
- Easy To Install - No Modifications Required
- Embossed Diamond Audio Logo For Custom Look
MS692NEO2LK13 Features:
- 1998-2013 Harley Davidson® Cut In Lid Kit
- Includes Wire Harness
- Heavy Duty Industrial Cast Aluminum Basket
- Waterproof Back Dupont Kevlar Cone
- Neodymium Magnet Motor Structure
- 2" Black High Temperature Coated Voice Coil
- Bi-ampable For DSP Tuning or Multi Amp Set Up
- Field Serviceable Tweeter
- Includes: MS692NEO2 6”x9” 2-Way Full Range Speaker
- Power Handling:200W RMS/600W MAX
- Mounting Diameter: 6.38" x 9.19" (162mm x 233.5mm)
- Mounting Depth: 3.74" (95mm)
MSPWHR Features:
- 8 Gauge Oxygen Free Wire
- Inline Fuse Holder for ATC/ATO Blade Fuse
DHDMCA Features:
- Allows use of 6.5" speakers in Factory Fairing
- Kit contains 2 Adapter Rings
- Kit includes Mounting Hardware.
- This item fits the following models:
- 1998 - 2009 Harley Davidson FLHT Electra Glide Standard
- 1998 - 2013 Harley Davidson FLHTC Electra Glide Classic
- 1998 - 2006 Harley Davidson FLHTCI Electra Glide Classic
- 2003 - 2006 Harley Davidson FLHTI Electra Glide Standard
- 2006 - 2013 Harley Davidson FLHXI Street Glide
