Diamond Audio DA9813RGTP2R (Package Includes MSHD9813RG, MICRO4V2, MP652, DHDRG13, HXM65F2BK, MSPWHR, DHDMCA, DHDRGU, TOUR PACK 1/2" SPACER REQUIRED)

Features:

MSHD9813RG Features:

• 10 Channel - Clip Free Independent Outputs
  (6) 5v Rms Rca Outputs + (4)

• 50x4@2ω/25x4@4ω Rms Clip-free

• Wireless Apple Carplay

• 7" Ultra Bright, 1000 Nit Lcd Touchscreen

• Glove-friendly Touchscreen

• Retains Handlebar Controls, Reconfigurable Though Programming

• 6 Independent Eq's for the Ultimate Sound Customization (1 Global, 5 for Setup)

• 10ch Dsp Features Time Delay, Hp/lp/bp Crossovers With Adjustable 6,12,18,24db Slopes Independent Channels Can Be Linked Together or Separated From Fader Control (Default)

• Ipx6 Water Resistance / Weatherproof Trim Gasket Included

• Am/fm/weatherband

• Media Player Supports Mp3, Aac, Wma, Ape, Flac, Wav, Mpeg4, H.263, H.264, H.265, Xvvid, Avi, Vp8, Vp9

• Bluetooth 5.2 Streaming / Hands-free Calling (Microphone Included)

• Usb Media Input / Charger 2.1a

• Backup Camera Input

• Bluetooth Line Driver for Maximum Output

• Multiple Patented Features and Technologies


MICRO4V2 Features:

• 150W x 4 @ 2Ω
• 80W x 4 @ 4Ω
• 300W x 2 @ 4Ω Bridged
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 40-400Hz, 12dB Per Octave Slope
• Frequency Response: 10-33KHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Selectable 2CH / 4CH Input Modes
• Dimensions: 9.7” x 4.0” x 1.46” / 230.5 x 103 x 37.2 mm
• Disconnected RCA Input & Speaker Output Harness Kits Included

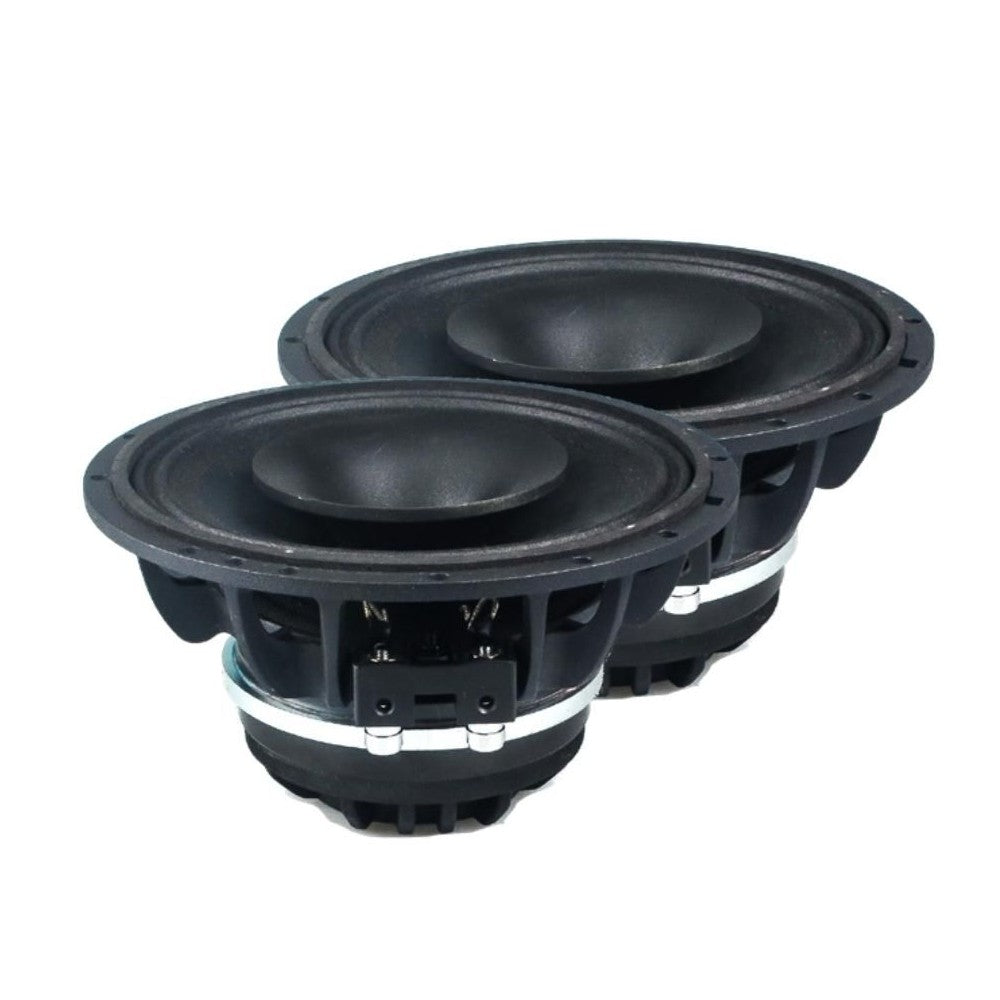

MP652 Features:

• NEO Magnet
• Heavy Duty Steel Basket
• Mid Driver: 1.5" 2Ω Single Layer High Temp Voice Coil
• Tweeter: 1.0" 8Ω Single Layer High Temp Voice Coil
• Frequency Response: 110Hz -18Khz
• High Sensitivity 101dB 1W/1M
• 12dB 2nd Order Filter Crossover

DHDRG13 Features:

• Durable, OEM Quality Construction
• Easy To Install - Direct Fit No Modifications Required
• Embossed Diamond Audio Logo For Custom Look
• Rugged, Long Lasting Protection
• Sold In Pairs

HXM65F2BK Features:

• Speaker Size: 6.5"

• Speaker Type: Horn Loaded Co Axial

• Ohms (Per Coil): 2

• Number of Voice Coils: Single

• Cone Material: Carbon Fiber

• Diaphragm Material: Titanium

• Basket Material: Fibreglass Reinforced Polymer

• Magnet Type: Neodymium

• Surround Material: Rubber

• Water Resistance:

• Voice Coil Diameter - Inch (Mm): 2"

• Thiele/small Parameters

• Sensitivity (1w/1m): 95

• Re (ω) [series]: 1.8

• Qms: 7.506

• Qes: 0.369

• Qts: 0.352

• Fs (Hz): 105

• Vas (L): 6.172

• Cms (Mm/n): 0.288

• Mms (G): 8.024

• Sd (M2): 122.718

• Bl (T*m): 5.068

• Xmax (Mm): 2.75

• Power Handling Rms: 150

• Power Handling Max: 450

• Mounting Depth: In.(Mm): 2.52" (64mm)

• Cut Out Diameter in.(Mm): 5.44" (138.06mm)

• Over All Diameter in.(Mm): 6.61" (167.79mm)

• Over All Height in.(Mm): 3.03" (77.02mm)

MSPWHR Features:

• 8 Gauge Oxygen Free Wire
• Inline Fuse Holder for ATC/ATO Blade Fuse

DHDMCA Features:

• Allows use of 6.5" speakers in Factory Fairing
• Kit contains 2 Adapter Rings
• Kit includes Mounting Hardware.
• This item fits the following models:
  • 1998 - 2009 Harley Davidson FLHT Electra Glide Standard
  • 1998 - 2013 Harley Davidson FLHTC Electra Glide Classic
  • 1998 - 2006 Harley Davidson FLHTCI Electra Glide Classic
  • 2003 - 2006 Harley Davidson FLHTI Electra Glide Standard
  • 2006 - 2013 Harley Davidson FLHXI Street Glide

DHDRGU Features:

• Fits: 6.5" Speakers
• Embossed Diamond Audio Logo For Custom Look
• Rugged, Long Lasting Protection
• Sold In Pairs
