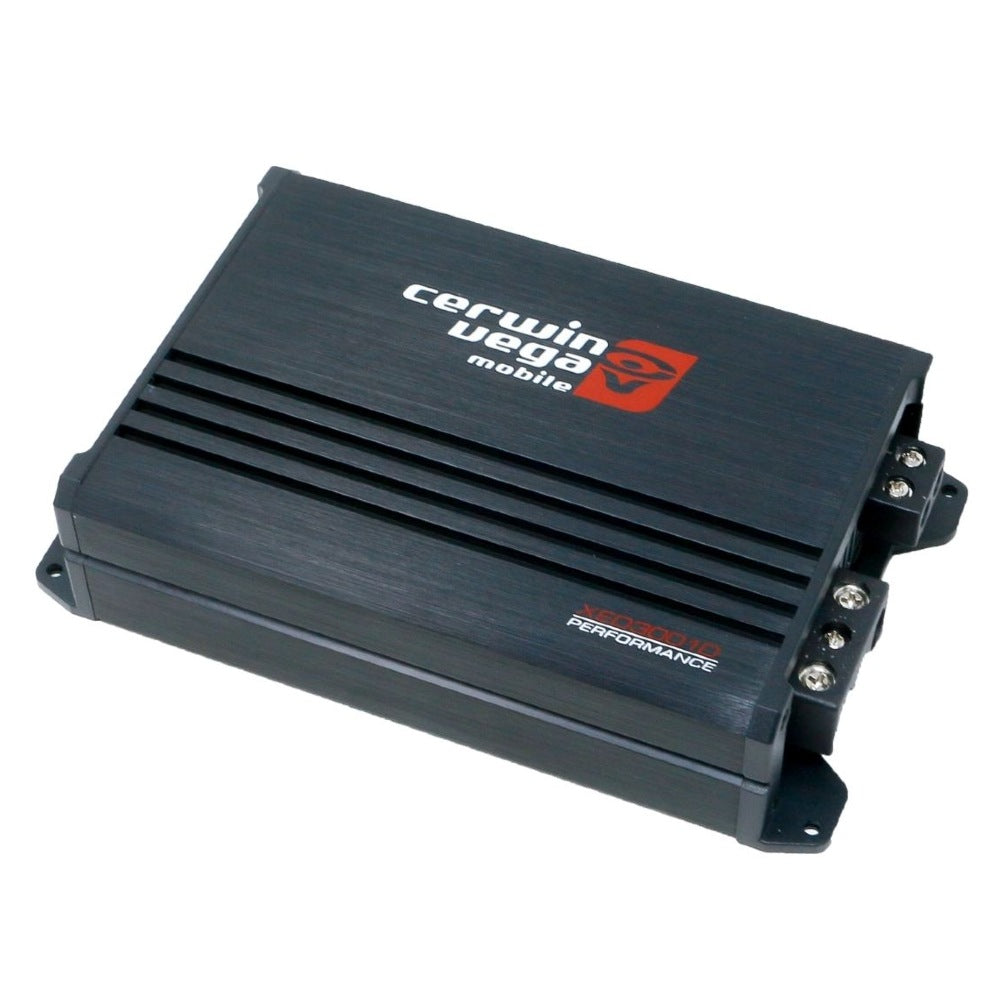

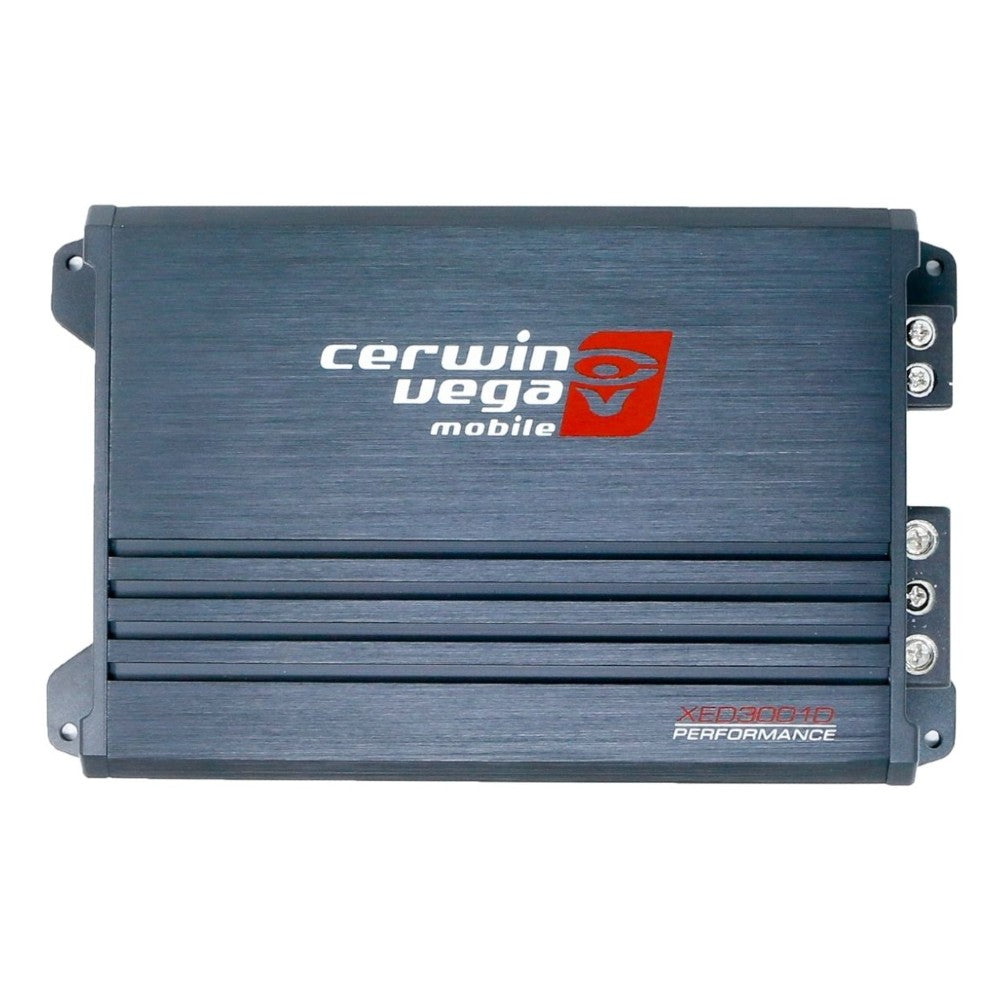

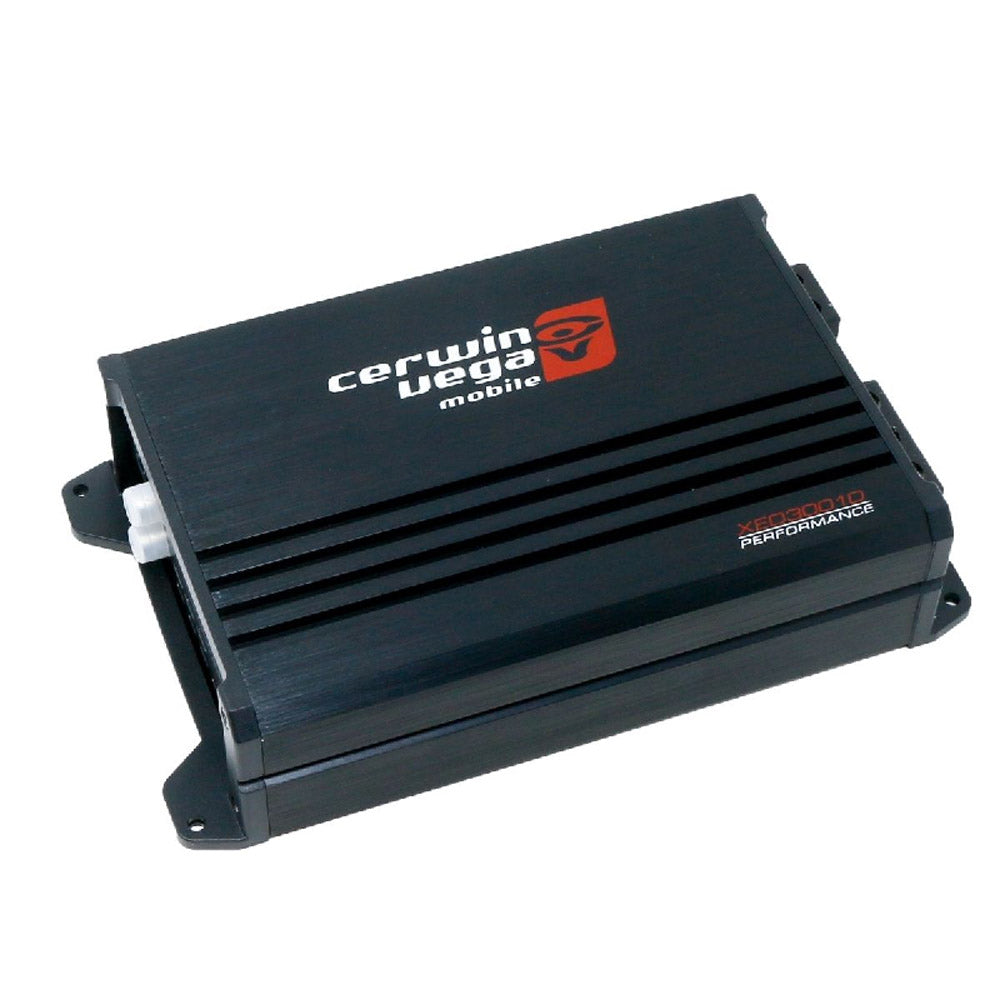

Cerwin Vega XED3001D 1-Channel XED Series Monoblock Class-D Car Amplifier (Refurbished)

Features:

• 1-Channel Monoblock Class-D Car Audio Amplifier
• Designed Specifically for High-performance Subwoofer Systems
• High-efficiency Amplifier Technology for Powerful Output
• Lightweight Aluminum Chassis for Superior Heat Dissipation
• Clean, Distortion-free Bass Reproduction
• Ideal for Aftermarket Subwoofer Upgrades
• Bass Boost: 0dB-12dB
• LED Power/Protect Light Indicator
• Bass Control Included

Specifications

XED Series 1-Channel Mono Block Amplifier

Power Rating (RMS)

• Frequency Response (Hz): 35Hz - 350Hz
• RMS Power Per Channel 4Ω 200W X 1
• RMS Power Per Channel 2Ω 300W X 1

Power Supply

• Power Supply: Full WPM
• Power Supply Threshold: 10.0V-16.0V (DC)
• Idle Current: (0.7A)

Distortion

• THD 4 (100HZ @4Ω): 0.1%
• S/N RATIO (A Weighted @1W): -85dBA
• S/N RATIO (A Weighted @FP): -101.1dBA

Input Sensitivity

• Low Level Input: 250mV-6.0V
• High Level Input: 1.1V~>20.0V

Input Impedance

• Low Level Input: 20KΩ
• High Level Input: 100KΩ

Output Stage

• Output Impedance: 2Ω
• Damping Factor (50Hz@4Ω): >70
• Bandwidth (-3dB): 10Hz-250Hz

Crossover (1-12dB/Oct)

• Variable High-Pass:
• Variable low-Pass: 35Hz-250Hz

Fuse Rating

• ATC: 20A x 2 (Inside)

Dimensions

• Length x Width x Height: 6.3" x 4.7" x 1.8" (160 x 120 x 46.5)mm

THREE MONTHS LIMITED WARRANTY
